Discover the power of ultrasonic baths—effective cleaning solutions for various industries. Learn about their working principles, specifications, advantages, and leading manufacturers

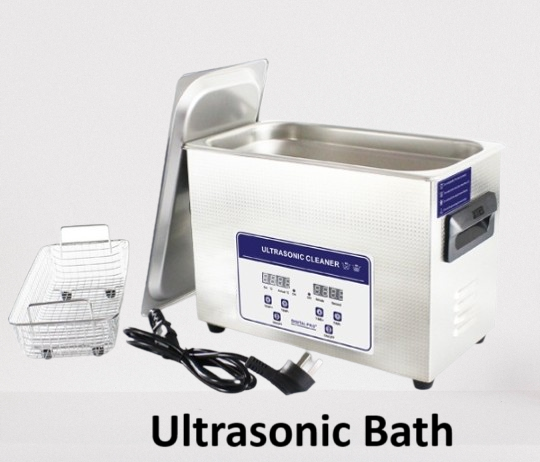

What is an Ultrasonic Bath?
An ultrasonic bath is a modern cleaning device that uses high-frequency sound waves (ultrasound) to clean objects thoroughly and efficiently. The method relies on cavitation bubbles formed by sound waves in a liquid to remove dirt, grease, and even microscopic contaminants from complex geometries, delicate surfaces, and hard-to-reach areas.
This cleaning technology is widely used in industries such as healthcare, laboratories, jewelry, automotive, and optics due to its gentle yet effective cleaning mechanism.
Working Principle of Ultrasonic Bath
- Cavitation Formation:
High-frequency sound waves (typically 25-120 kHz) are introduced into a cleaning liquid, causing rapid compression and rarefaction cycles. - Bubble Implosion:
These cycles generate microscopic cavitation bubbles. When these bubbles collapse, they release energy that dislodges contaminants from the object’s surface. - Cleaning Action:
The imploding bubbles penetrate fine crevices, dislodging dirt, grease, and even bacteria. The addition of suitable cleaning agents enhances the cleaning process.
Technical Specifications of Ultrasonic Bath
| Feature | Details |
|---|---|
| Frequency Range | 25 kHz (industrial applications), 40 kHz (general use), 80+ kHz (precision cleaning) |
| Ultrasonic Power | Varies by model: 50W to 500W (customizable as required) |
| Tank Material | Stainless Steel (SS 304 grade, 1.6 mm thick) |
| Temperature Control | Digital controller, adjustable from ambient to 60-70°C |
| Timer | LED digital timer, settable from 0-20 or 90 minutes |
| Capacity | 1.5L to 20L or more (custom tank sizes available) |
| Heating Mechanism | SS cartridge immersion heater, replaceable |
| Protection Mechanism | Overheating shut-off and frequency auto-tuning |
| Accessories | SS basket, SS lid, power cord, user manual |
Advantages and Disadvantages of Ultrasonic Bath
| Advantages | Disadvantages |
|---|---|
| Cleans thoroughly, even in hard-to-reach areas. | May not be suitable for organic materials or delicate items with sensitive coatings. |
| Gentle and safe cleaning process. | Ineffective for flammable or explosive materials. |
| Can clean multiple items simultaneously, saving time. | Requires proper handling and adherence to manufacturer guidelines. |
| Removes bacteria, grease, rust, and pigments efficiently. | Cleaning time can vary depending on contamination level. |
| Easy operation with low maintenance requirements. | Not all ultrasonic baths come with advanced features like auto-degassing. |
| Effective for intricate items such as jewelry, dentures, and watch parts. | Incorrect frequency settings may reduce cleaning efficiency. |
| Available in various sizes and capacities to meet diverse needs. | Initial investment may be higher than manual cleaning methods. |
Applications of Ultrasonic Baths
- Jewelry Cleaning: Rings, bracelets, and delicate watch components.
- Medical Use: Sterilization of surgical tools and dental equipment.
- Laboratory Use: Degassing HPLC samples, cleaning glassware, and sono-chemistry.
- Automotive Industry: Cleaning engine parts, carburetors, and bearings.
- Optics: Cleaning eyeglasses, optical lenses, and delicate components.
Top Manufacturers of Ultrasonic Baths
| Manufacturers | Special Features |
| MRC | Specializes in laboratory cleaning equipment with 30+ years of experience. Offers reliable ultrasonic baths with excellent after-sales support. |
| Leela Sonic | Indian manufacturer known for advanced MOSFET/IGBT-based designs and user-friendly ultrasonic baths. Provides customizable tank sizes. |
| Branson | Global leader offering precision ultrasonic cleaning solutions for industrial and medical use. |
| Elma Ultrasonic | Known for high-quality ultrasonic devices designed for scientific, medical, and industrial applications. |
| Crest Ultrasonics | Provides robust ultrasonic systems tailored for complex cleaning challenges. |
Elma Ultrasonics
- Location: Germany
- Specialties: Offers a wide range of ultrasonic cleaning systems for laboratory, medical, and industrial use. Their products emphasize precision, durability, and energy efficiency.
- Website: Elma Ultrasonics
Branson Ultrasonics (Emerson)
- Location: USA
- Specialties: Known for cutting-edge ultrasonic cleaning systems and technologies for industrial, medical, and aerospace applications.
- Website: Branson Ultrasonics
Grant Instruments
- Location: UK
- Specialties: Offers a variety of ultrasonic baths, including digital and analog models, with features like precise temperature control and high-performance cleaning.
- Website: Grant InstrumentsGrant Instruments
SharperTek
- Location: USA
- Specialties: Affordable ultrasonic cleaning solutions for jewelry, dental, and medical instruments, along with industrial-grade cleaners.
- Website: SharperTek
Heidolph Instruments
- Location: Germany
- Specialties: High-efficiency ultrasonic baths with features like built-in heaters and durable stainless steel tanks for scientific and laboratory applications.
- Website: Heidolph InstrumentsHeidolph
Blue Wave Ultrasonics
- Location: USA
- Specialties: Heavy-duty ultrasonic cleaners tailored for automotive, aerospace, and defense industries.
- Website: Blue Wave Ultrasonics
Leela Sonic
- Location: India
- Specialties: Offers customizable ultrasonic baths with advanced MOSFET/IGBT technology for laboratory and pharmaceutical applications.
- Website: Leela Sonic
Crest Ultrasonics
- Location: USA
- Specialties: High-performance ultrasonic cleaners used in industrial applications like electronics, medical tools, and automotive parts.
- Website: Crest Ultrasonics
Bandelin Electronic
- Location: Germany
- Specialties: Specializes in ultrasonic cleaning systems and solutions for medical, laboratory, and industrial use.
- Website: Bandelin Electronic
Frequently Asked Questions:
What does an ultrasonic bath do?
An ultrasonic bath cleans objects by using high-frequency sound waves in a liquid to create cavitation bubbles. These bubbles dislodge dirt, grease, and microscopic contaminants from the object’s surface and hard-to-reach areas.
What type of bath is ultrasonic?
An ultrasonic bath is a cleaning bath that uses ultrasound technology, typically operating at frequencies between 25 and 120 kHz, to agitate a liquid and remove contaminants effectively.
What liquid is used in an ultrasonic bath?
The liquid used can be water mixed with specific cleaning agents, detergents, or solvents, depending on the type of contamination and material being cleaned.
What is the advantage of ultrasonic?
The advantages include:
- Thorough cleaning of intricate parts.
- Gentle yet effective action.
- Ability to clean multiple items simultaneously.
- Removal of bacteria, grease, and stubborn particles.
How long does an ultrasonic bath take?
Cleaning time typically ranges from 2 to 10 minutes for most objects, extending up to 20 minutes for heavily soiled items.
Where is ultrasonic used?
Ultrasonic technology is used in:
- Medical and dental tools sterilization.
- Jewelry cleaning.
- Laboratory glassware cleaning.
- Automotive and aerospace industries.
- Optics and electronics.
What temperature is an ultrasonic bath?
The temperature usually ranges from ambient to 60-70°C, depending on the cleaning requirements.
What is the principle of ultrasonication?
Ultrasonication works on the cavitation principle, where sound waves create microscopic bubbles in the liquid. These bubbles collapse with energy that removes contaminants from surfaces.
Can you put soap in ultrasonic?
Yes, you can add soap or a mild detergent as a cleaning agent, provided it is compatible with the material being cleaned and does not foam excessively.
How do you clean an ultrasonic bath?
- Drain the bath and remove debris.
- Wipe the tank with a clean, damp cloth.
- Use a cleaning solution recommended for ultrasonic tanks to remove any residue.
- Rinse thoroughly and let it dry before the next use.
Can you use tap water in ultrasonic?
Tap water can be used, but deionized or distilled water is preferred for precision cleaning to avoid mineral deposits and enhance performance.
How is an ultrasonic bath tested?
Testing can be done using foil tests (placing aluminum foil in the bath to check uniform bubble activity) or checking for consistent cleaning results on a test object.
How does ultrasonic work?
Ultrasound waves generate rapid pressure changes in a liquid, creating cavitation bubbles. When these bubbles collapse, they produce energy that cleans the object.
What is the frequency of ultrasonic bath?
The frequency typically ranges between 25 kHz and 120 kHz, with 40 kHz being the most commonly used.
What do ultrasonic baths do?
They remove dirt, grease, rust, and contaminants from delicate and complex objects through high-frequency sound wave agitation.
What devices use ultrasonic?
Devices using ultrasonic technology include:
- Ultrasonic cleaners.
- Medical imaging equipment (e.g., ultrasound scanners).
- Humidifiers.
- Sonicators in laboratories.
What liquid is in ultrasonic?
The liquid can be water with added cleaning agents, solvents, or detergents, tailored to the cleaning application.
Where is ultrasonic cleaning used?
It is used in industries such as:
- Healthcare for sterilization.
- Laboratories for cleaning glassware.
- Automotive for engine parts.
- Electronics for PCB cleaning.
What are the examples of ultrasonic?
Examples include:
- Jewelry cleaning.
- Degassing HPLC samples.
- Cleaning carburetors in the automotive sector.
- Surgical tool sterilization.
What kind of water do you use in an ultrasonic bath?
Deionized or distilled water is ideal, as it prevents mineral deposits and ensures efficient cleaning.
Who uses ultrasonic?
Industries such as healthcare, automotive, electronics, laboratories, aerospace, and jewelry rely on ultrasonic cleaning.
What are the advantages of ultrasound?
- Non-invasive cleaning or imaging.
- Penetrates intricate parts and crevices.
- Gentle on delicate surfaces.
- Highly effective in removing microscopic contaminants.
What diseases can ultrasound detect?
Ultrasound can detect:
- Cardiovascular conditions.
- Tumors and cysts.
- Pregnancy-related abnormalities.
- Liver, kidney, and gallbladder disorders.
- Thyroid and breast anomalies.
