A UV spectrophotometer is a sophisticated analytical instrument used extensively in various fields, such as chemistry, biology, pharmaceuticals, and environmental sciences. Its operation is grounded in the Beer-Lambert Law, which establishes a direct relationship between the concentration of absorbing molecules and the intensity of absorbed light. This article explores its principle, key components, and diverse applications.
Principle of UV Spectrophotometry
At the core of UV spectrophotometry lies the principle that molecules absorb light of specific wavelengths corresponding to the energy required to transition from a ground state to an excited state. This energy difference matches the wavelength of UV light, typically within the range of 200–400 nm.
The amount of light absorbed by a sample is governed by the Beer-Lambert law, expressed mathematically as:A=ε⋅c⋅lA = \varepsilon \cdot c \cdot lA=ε⋅c⋅l
Where:
- AAA: Absorbance
- ε\varepsilonε: Molar absorptivity
- ccc: Concentration of the sample
- lll: Path length of the cuvette
When light passes through a sample, a portion is absorbed, and the rest is transmitted. By measuring this transmitted light, the spectrophotometer determines the concentration of the analyte in the sample.

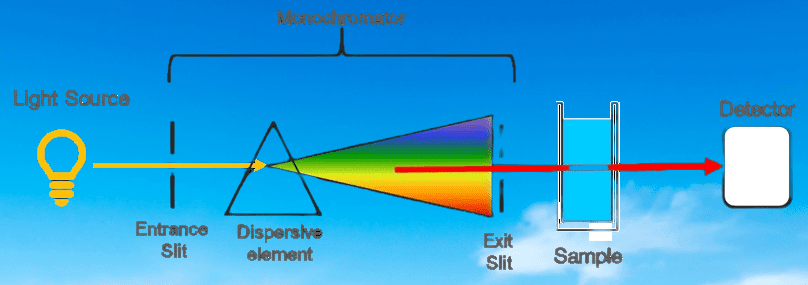

Key Components of a UV Spectrophotometer
The operation of the UV spectrophotometer relies on six main components:
| Component | Function |
|---|---|
| Light Source | Provides a continuous spectrum of light. Hydrogen-Deuterium and Tungsten filament lamps are common, covering the UV region below 375 nm and extending to visible wavelengths. |
| Monochromator | Separates light into its component wavelengths using prisms and slits. A dual-beam system ensures precise measurements. |
| Sample and Reference Cells | Holds the solutions. Silica or quartz cells are used to prevent UV absorption, unlike glass. |
| Detector | Captures light after passing through the sample and reference cells, generating a signal proportional to light intensity. |
| Amplifier | Strengthens weak signals from the detector for accurate recording. |
| Recording Device | Logs the absorbance data electronically, often interfacing with a computer for detailed analysis. |
Applications of UV Spectrophotometry:
Advantages and Limitations
| Advantages | Limitations |
|---|---|
| High sensitivity and precision | Limited to UV-absorbing compounds |
| Rapid and non-destructive measurements | Requires careful calibration and maintenance |
| Versatile for diverse sample types | Absorption affected by impurities in samples |
Conclusion
The UV spectrophotometer exemplifies the integration of physics, chemistry, and engineering principles to deliver precise analytical capabilities. Its applications, ranging from pharmaceuticals to environmental science, underscore its relevance in addressing contemporary challenges. A comprehensive understanding of its principle and components equips researchers and professionals to harness its full potential effectively.
FREQUENTLY ASKED QUESTIONS (FAQ):
Principles and Components of a Spectrophotometer
A spectrophotometer operates based on the interaction of light with matter. It measures the intensity of light absorbed by a sample to deduce its properties. Key components include:
- Light Source: Provides a continuous spectrum for analysis.
- Monochromator: Filters light into specific wavelengths.
- Sample Holder: Houses the analyte solution.
- Detector: Converts light into electrical signals.
- Data Processor: Records and processes absorbance or transmittance data.
Components of UV Spectrophotometry
A UV spectrophotometer includes:
- UV Light Source: Commonly uses Deuterium and Tungsten lamps.
- Monochromators: Prisms or gratings for wavelength selection.
- Cuvettes: Made of quartz to avoid UV absorption.
- Photodetectors: Capture transmitted or reflected light.
- Amplifiers: Boost signal strength for clarity in readings.
Applications of a Spectrophotometer
Spectrophotometers are used in:
- Pharmaceutical Research: Drug formulation and stability analysis.
- Environmental Studies: Detecting water and air contaminants.
- Food Science: Evaluating nutritional content and additives.
- Medical Diagnostics: Measuring hemoglobin levels or enzyme activity.
Principle of Beer-Lambert Law
This law states that the absorbance of light through a medium is directly proportional to the concentration of the absorbing species and the path length. Mathematically:A=ε⋅c⋅lA = \varepsilon \cdot c \cdot lA=ε⋅c⋅l
Applications of UV Spectroscopy
UV spectroscopy finds relevance in:
- Drug Analysis: Estimation of active pharmaceutical ingredients.
- DNA and Protein Studies: Quantification and purity assessment.
- Material Science: Analyzing coatings and UV stability.
- Chemical Reaction Monitoring: Observing reaction kinetics.
Why Quartz Cuvettes in UV?
Quartz cuvettes are transparent in the UV range, preventing interference from the material’s absorption.
Range of UV Visible
The UV-Vis spectrum spans wavelengths of 200–800 nm, divided into UV (200–400 nm) and visible (400–800 nm) regions.
Application of Beer’s Law
Used extensively to determine solute concentrations in solutions via absorbance measurement.
9. Unit of Absorbance
Absorbance is dimensionless but is represented numerically as a ratio.
Working Principle of a Colorimeter
A colorimeter measures the absorbance of specific colors of light in the visible spectrum by a solution.
Definition of Transmittance
Transmittance is the ratio of light passing through a sample to the light incident on it, expressed in percentage.
Meaning of ε\varepsilonε in Beer’s Law
Molar absorptivity, ε\varepsilonε, quantifies how well a substance absorbs light at a specific wavelength.
Unit of Wavelength
Wavelength is measured in nanometers (nm) or meters (m) in the SI system.
SI Unit for λ\lambdaλ
The SI unit of wavelength (λ\lambdaλ) is the meter (m).
Amplitude
Amplitude is the height of a wave and represents the intensity of the light.
Shortest Wavelength
Extreme ultraviolet radiation has wavelengths as short as 10 nm.
Calculating Wavelength
Wavelength can be calculated using the equation:λ=cf\lambda = \frac{c}{f}λ=fc
Where ccc is the speed of light and fff is the frequency.
Symbol for Wavelength
Wavelength is represented by the Greek letter λ\lambdaλ.
Peak of a Wave
The peak is the highest point of the wave, indicating maximum amplitude.
Range of UV Spectrum
The UV spectrum covers 200–400 nm.
Principle of Spectrophotometer
It measures light absorbance or transmittance through a substance, correlating this to concentration.
Why UV Spectroscopy is Used
UV spectroscopy is ideal for detecting and quantifying substances due to its high sensitivity and precision.
Detectors in UV Spectroscopy
Common detectors include:
- Photomultiplier tubes
- Photodiodes
- Charged coupled devices (CCDs)
Applications of UV-Vis Spectroscopy
- Quality Control: Ensures consistency in production.
- Agriculture: Analyzing soil and plant nutrients.
- Forensics: Identifying chemical substances.
Two Main Components of a Spectrophotometer
The light source and detector are essential for functionality.
Lamp Used in UV Spectroscopy
Deuterium and Tungsten lamps are standard for covering UV and visible regions.
Materials Used in UV Spectroscopy
Silica and quartz are preferred for their transparency in the UV range.
Using Beer-Lambert Law in Spectroscopy
Determines concentrations by correlating absorbance with the analyte’s properties.
How to Use a UV Spectrophotometer
Prepare the sample, calibrate the device, insert the cuvette, and record absorbance.
Principle of UV Spectroscopy
Analyzes how UV light interacts with molecules to induce electronic transitions.
How to Use Cuvettes
Fill them cleanly, handle by edges, and align with the spectrophotometer’s beam path.
Full Form of UV Spectroscopy
Ultraviolet Spectroscopy.
Color of UV Light
UV light is invisible but can fluoresce as violet or purple in certain conditions.
Red and Blue Shift in UV Spectroscopy
- Red Shift: Absorption moves to longer wavelengths.
- Blue Shift: Absorption moves to shorter wavelengths.
Testing UV Light
Use photometers or UV-sensitive detectors.
Handling Cuvettes in Spectrophotometers
Place them in the correct orientation to align with the beam for accurate measurements.
