Differentiation between ULPA vs HEPA filter

Discover the key differences between ULPA vs HEPA filters in terms of filtration efficiency, particle size removal, airflow, cost, and applications. Learn which filter is best suited for your needs in cleanroom and air purification environments. Two of the most advanced air filtration technologies widely used today are HEPA (High-Efficiency Particulate Air) filters and ULPA (Ultra-Low Particulate Air) filters. Although both are designed to remove fine particles from the air, they differ in terms of their filtration efficiency, airflow, cost, and lifespan. Air quality is a crucial factor in several industries, including pharmaceutical manufacturing, electronics production, biosafety, and even home environments.ULPA vs HEPA filter

Descriptions of ULPA vs HEPA filter

Both HEPA and ULPA filters serve the same core purpose: capturing and removing small airborne contaminants such as dust, bacteria, and pollutants. These filters are typically constructed from boron silicate fibers, randomly arranged in layers to form a fine mesh. Through mechanisms like electrostatic attraction and physical interception, particles are captured as air passes through the filter. Despite their similar structure and purpose, HEPA and ULPA filters have significant differences, especially in particle retention and efficiency.

Specifications of the ULPA vs HEPA filter:

SpecificationHEPA Filter (High-Efficiency Particulate Air)ULPA Filter (Ultra-Low Penetration Air)
Filtration Efficiency99.97% for particles ≥ 0.3 microns99.999% for particles ≥ 0.12 microns
Particle Size RemovalCaptures particles ≥ 0.3 micronsCaptures particles ≥ 0.12 microns
Airflow CapacityHigher airflow, lower resistance20-50% lower airflow due to denser media
Pressure DropLower pressure dropHigher pressure drop (20-50% more than HEPA)
ApplicationsAir purifiers, HVAC systems, cleanrooms, medical facilitiesSemiconductor manufacturing, pharmaceutical cleanrooms, critical biosafety labs
CostMore affordable~35% more expensive than HEPA filters
Lifespan10 years on average5-8 years on average
Filter MediaBoron silicate fibersDenser boron silicate fibers
Energy ConsumptionLower energy consumption due to better airflowHigher energy consumption due to dense media
Certification StandardMust capture 99.97% of particles ≥ 0.3 micronsMust capture 99.999% of particles ≥ 0.12 microns
Replacement FrequencyLess frequent due to higher airflow and longer lifespanMore frequent due to shorter lifespan and lower airflow
Standard GradesH13, H14 (best efficiency is H14)Type K, F
https://flairpharma.com/sop-for-replacement-of-pre-fine-semi-hepa-and-hepa-filter/

Filtering Efficiency: Micron Size and Removal Rate

The most important difference between HEPA and ULPA filters is the size of the particles they can filter.

  • HEPA Filters: Standard HEPA filters, such as HEPA C and HEPA J, are capable of removing 99.97% of airborne particles that are 0.3 microns or larger. They are designed to capture most contaminants found in common environments, including dust mites, pollen, mold spores, and some bacteria.
  • ULPA Filters: ULPA filters, like the Type K and Type F, are more advanced in their filtering capacity. They can capture 99.999% of particles as small as 0.12 microns. This includes ultra-fine contaminants, such as certain viruses, finer pollutants, and smaller microorganisms, making them suitable for environments where strict air purity is mandatory.

In essence, while both filters are highly effective, ULPA filters can capture even smaller particles than HEPA filters, making them a preferred choice in extremely controlled environments like semiconductor manufacturing or high-end pharmaceutical labs.

Airflow Capacity: Impact on Circulation

Airflow is another factor that sets HEPA and ULPA filters apart.

  • HEPA Filters: These filters allow for more efficient air circulation because their filter media is less dense compared to ULPA filters. This means air can pass through more easily, ensuring faster and better airflow in the room or system where they are installed.
  • ULPA Filters: Due to the denser construction of ULPA filters, the airflow is typically 20% to 50% lower than that in HEPA filters of the same dimensions. This reduced airflow results in slower air circulation in the environment, requiring more power to maintain the same level of performance. In biosafety cabinets, cleanrooms, or other critical settings, the blower must work harder when ULPA filters are in use, leading to higher energy consumption.
  •

Cost Comparison: Initial and Ongoing Expenses

The cost of air filtration is another critical factor to consider when choosing between HEPA and ULPA filters.

  • HEPA Filters: Due to their less complex filtration requirements, HEPA filters are generally more affordable. They typically cost around 35% less than ULPA filters, making them a more economical option for environments where ultra-fine filtration isn’t necessary.
  • ULPA Filters: Because they are designed to capture smaller particles with higher efficiency, ULPA filters come with a premium price tag. Their enhanced filtering performance justifies the additional cost, particularly in environments where maintaining ultra-clean air is essential. However, the higher initial cost, combined with increased energy consumption, makes ULPA filters a more expensive long-term investment.

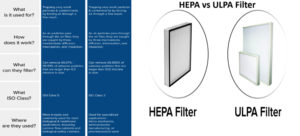

ULPA vs HEPA

FeatureHEPA Filter (High-Efficiency Particulate Air)ULPA Filter (Ultra-Low Penetration Air)
Filtration EfficiencyCaptures 99.97% of particles ≥ 0.3 micronsCaptures 99.999% of particles ≥ 0.12 microns
Airflow CapacityHigher airflow due to less dense filter mediaLower airflow (20-50% less than HEPA) due to denser filter media
ApplicationsResidential air purifiers, HVAC systems, cleanrooms, medical facilitiesCritical environments like pharmaceutical manufacturing, semiconductor cleanrooms, biosafety labs
CostMore affordable (approximately 35% cheaper than ULPA)More expensive due to higher filtration efficiency
LifespanApproximately 10 yearsApproximately 5 to 8 years
Particle Size RemovedRemoves particles ≥ 0.3 micronsRemoves particles ≥ 0.12 microns
Energy ConsumptionLower energy consumption due to better airflowHigher energy consumption as blowers work harder to maintain airflow
MaintenanceLonger intervals between replacements, less frequent maintenanceShorter intervals between replacements, more frequent maintenance

Lifespan and Maintenance

The lifespan of air filters affects not only replacement frequency but also ongoing maintenance costs.

  • HEPA Filters: On average, HEPA filters can last for about 10 years, assuming they are used in environments with moderate particulate concentrations. The better airflow through HEPA filters contributes to their longer lifespan, as they take more time to become saturated with particles.
  • ULPA Filters: ULPA filters, on the other hand, typically have a shorter lifespan of around 5 to 8 years. Their denser media fills up with particles more quickly, especially in high-contamination environments, leading to more frequent replacements. While this means higher ongoing maintenance costs, ULPA filters’ ability to provide ultra-clean air justifies the additional expense in critical applications.

Selecting the Right Filter: HEPA or ULPA?

Choosing between HEPA and ULPA filters depends on the specific needs of your environment. Below are some key factors to consider:

  • Air Quality Requirements: For general air purification needs, such as in residential settings, commercial buildings, or standard biosafety labs, HEPA filters are often sufficient. They are efficient and economical, with a longer lifespan. However, if your facility demands exceptional air purity, such as in high-level pharmaceutical production or semiconductor cleanrooms, ULPA filters offer superior performance by capturing the smallest possible particles.
  • Cost and Budget Constraints: If budget considerations are important, HEPA filters are the more affordable option for most standard applications. ULPA filters, while more expensive, should be considered if contamination risks in your environment could lead to serious consequences.
  • Airflow Requirements: In situations where maintaining high airflow is critical, HEPA filters are better suited due to their lower pressure drop and higher airflow capacity. ULPA filters, with their denser media, may cause airflow issues if not paired with more powerful blowers.
  • Energy and Maintenance Considerations: If you are looking for a filter that provides good air filtration without significantly increasing energy usage or maintenance costs, HEPA filters offer a better balance. ULPA filters, although more efficient, tend to increase both power consumption and maintenance frequency due to their reduced airflow and shorter lifespan.

HEPA

A Matter of Efficiency and Application

HEPA and ULPA filters are both designed to provide clean, particle-free air, but they differ in their application, efficiency, and cost. HEPA filters are widely used in applications where high air quality is important but not ultra-critical. They offer longer life, better airflow, and lower costs. ULPA filters, while more expensive and demanding in terms of energy and maintenance, are essential for environments where even the smallest particles can have serious consequences.

Ultimately, the choice between HEPA and ULPA filters depends on the specific needs of your environment, the level of air cleanliness required, and your budget. For most general biological applications, HEPA filters will suffice, while ULPA filters should be reserved for settings that demand the highest level of air purity.

Frequently Asked Questions (FAQ’s)

What is the difference between HEPA and ULPA filters?
  • HEPA (High-Efficiency Particulate Air) filters capture 99.97% of particles as small as 0.3 microns, while ULPA (Ultra-Low Penetration Air) filters capture 99.999% of particles as small as 0.12 microns. ULPA filters offer better filtration efficiency but with lower airflow and higher cost compared to HEPA filters.
What is the difference between HEPA filter and ultra HEPA filter?
  • HEPA filters are designed to capture particles ≥ 0.3 microns at 99.97% efficiency, while Ultra HEPA filters are a more advanced form that can capture even smaller particles, typically down to 0.1 microns, with even higher efficiency.
What is the difference between a filter and a HEPA filter?
  • Regular filters capture larger particles like dust but do not meet the stringent efficiency standards for capturing fine particles. HEPA filters, on the other hand, are designed to remove 99.97% of fine particles down to 0.3 microns, including allergens, bacteria, and some viruses.
Are HEPA and ULPA filters the most costly filters in cleanroom design?
  • Yes, HEPA and ULPA filters are among the most costly due to their high efficiency in capturing fine particles. ULPA filters are generally more expensive than HEPA filters due to their superior filtration capabilities.
How long do ULPA filters last?
  • ULPA filters typically last for 5 to 8 years, depending on usage and contamination levels in the environment.
What is the purpose of the ULPA?
  • The purpose of ULPA filters is to capture and remove extremely small airborne contaminants, including particles down to 0.12 microns, making them ideal for environments where ultra-clean air is required, such as in cleanrooms and pharmaceutical manufacturing.
What is the pore size of the ULPA filter?
  • ULPA filters can capture particles as small as 0.12 microns, meaning they are designed to trap even ultra-fine particulate matter.
What is the pressure drop on a ULPA filter?
  • The pressure drop on a ULPA filter is generally 20% to 50% higher than that of HEPA filters due to the denser filter media, which results in lower airflow and increased resistance.
What is the full name of HEPA filter?
  • The full name of HEPA is High-Efficiency Particulate Air filter.
What is ULPA filter classification?
  • ULPA filters are classified based on their ability to remove 99.999% of airborne particles that are as small as 0.12 microns.
What size micron is a HEPA filter?
  • HEPA filters are designed to capture particles 0.3 microns in size or larger, with an efficiency of 99.97%.
What is the best HEPA filter grade?
  • The best HEPA filter grade is H14, which has an efficiency of 99.995% in capturing particles as small as 0.3 microns.
What is the difference between true HEPA filter and ultra HEPA filter?
  • A true HEPA filter captures particles ≥ 0.3 microns at 99.97% efficiency, while an Ultra HEPA filter can capture particles even smaller, typically down to 0.1 microns, with a higher efficiency.
What is difference with HEPA and true HEPA?
  • HEPA refers to the general standard for high-efficiency filters, while true HEPA filters specifically meet the industry standard of 99.97% efficiency for particles ≥ 0.3 microns. Some filters are marketed as “HEPA-like” but do not meet these standards.
Is ULPA or HEPA better?
  • ULPA is more efficient than HEPA, capturing smaller particles with 99.999% efficiency. However, it comes at the cost of lower airflow, higher energy consumption, and increased costs. For most applications, HEPA filters are sufficient, but ULPA is better for critical environments requiring ultra-pure air.
What is the full form of ULPA filter?
  • The full form of ULPA is Ultra-Low Penetration Air filter.
What are the two disadvantages of HEPA filters?
  • Disadvantages of HEPA filters:
    1. Limited particle size filtration: HEPA filters are less effective at capturing particles smaller than 0.3 microns.
    2. Airflow resistance: HEPA filters can reduce airflow in systems, increasing energy consumption.
Why do HEPA filters have 0.3 micron pore size?
  • HEPA filters are designed to capture particles of 0.3 microns because this is the “Most Penetrating Particle Size” (MPPS), which is the size most difficult to capture. The filter is optimized to perform most effectively at this challenging size.
Which is the correct pore size for HEPA filter?
  • The correct size for HEPA filter pores is designed to capture particles as small as 0.3 microns with 99.97% efficiency.
What is an UltraHEPA filter?
  • An UltraHEPA filter is a higher-grade filter than standard HEPA, designed to capture particles as small as 0.1 microns with higher filtration efficiency than traditional HEPA filters.
